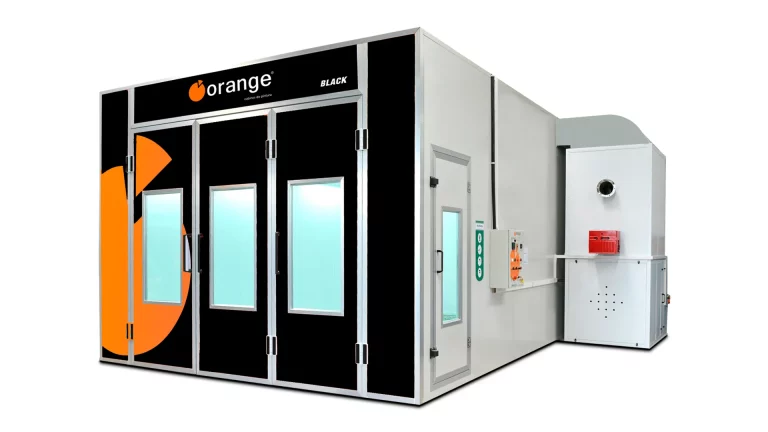

The Black Paint Booth was created to serve specialized workshops and high-end automotive centers that demand excellent finishes for automotive repairs. Originally developed as an export model, the Black has established itself in the domestic market by offering optimized airflow, high-performance lighting, and a tightly controlled paint environment.
Your system Down Draft With positive pressure, it directs filtered air from the ceiling to floor filters, significantly reducing particle contamination and ensuring impeccable finishes. With a robust metal structure and 50 mm PIR thermal and acoustic insulation, this cabin is equipped to handle even armored vehicles, without compromising operational safety and durability.

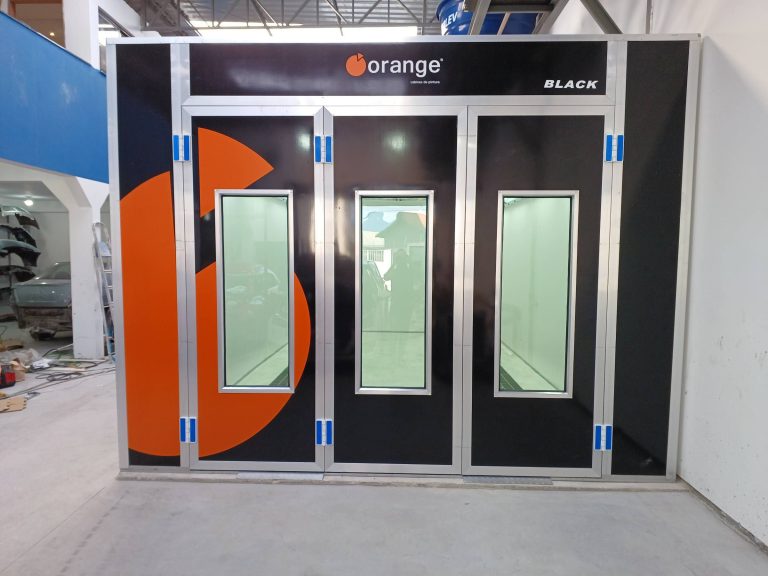

The design also features a double access door, allowing the painter to enter and exit without disturbing the painting area. Furthermore, it features 40 LED lamps positioned at 45°, providing 750 lux of illumination and virtually eliminating shadowed areas. Filter maintenance is simplified through easy access to both the air inlet and outlet through the floor, ensuring quick and efficient filter changes.
Benefits
Superior Finish Quality – The flow Down Draft minimizes the overspray and contamination, resulting in a premium finish.
Premium Lighting – 40 LED lamps with 750 lux, ensuring total visibility and reducing errors in the painting process.
Robust and Versatile Structure – Built with 50 mm PIR panels, prepared even for repairs on armored vehicles.
High Productivity – High-performance heating (180,000 kcal/h) and digital temperature control, accelerating the drying process.
Simplified Maintenance – Easily accessible filters on the floor, reducing downtime and optimizing operation.

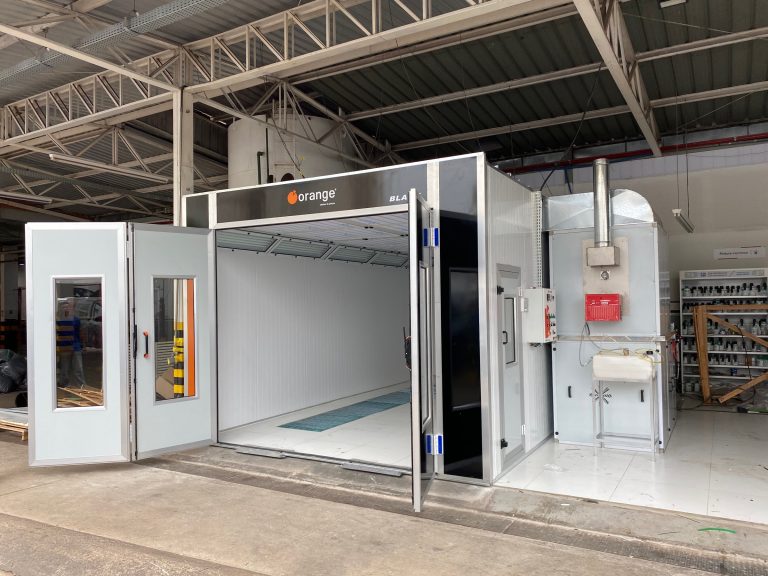

Operational Safety – Independent main door and side door, reducing air exchange in the cabin and the entry of particles.
Technical Characteristics
- No base
- Structure with thermoacoustic insulation in 50mm PIR panels and floor with grids for easy removal of filters.
- Airflow system DOwn Draft, that is, with filtration through the ceiling and floor.

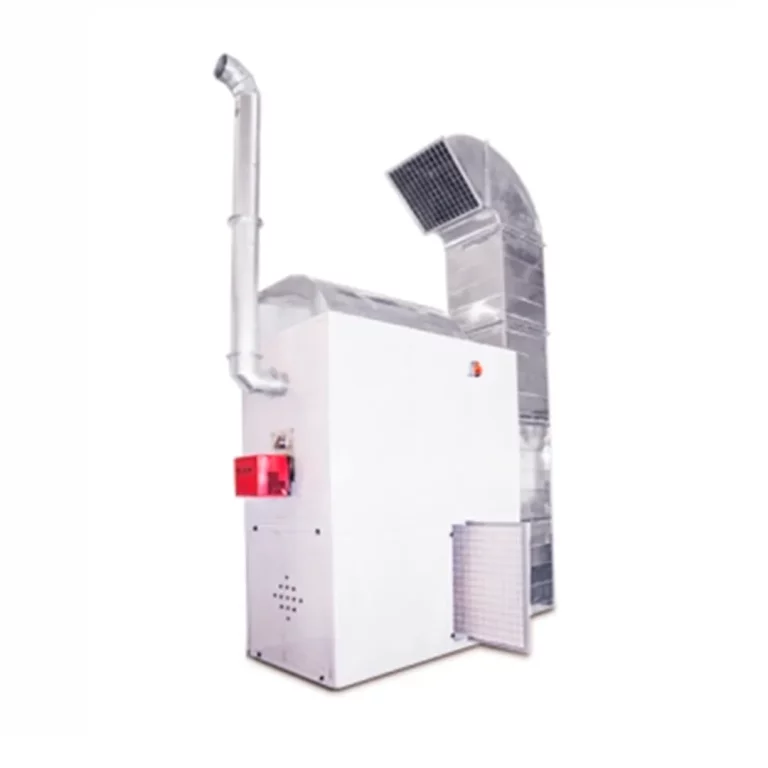

- Heating system with high-performance burner (180,000 kcal/h) and stainless steel heat exchanger.

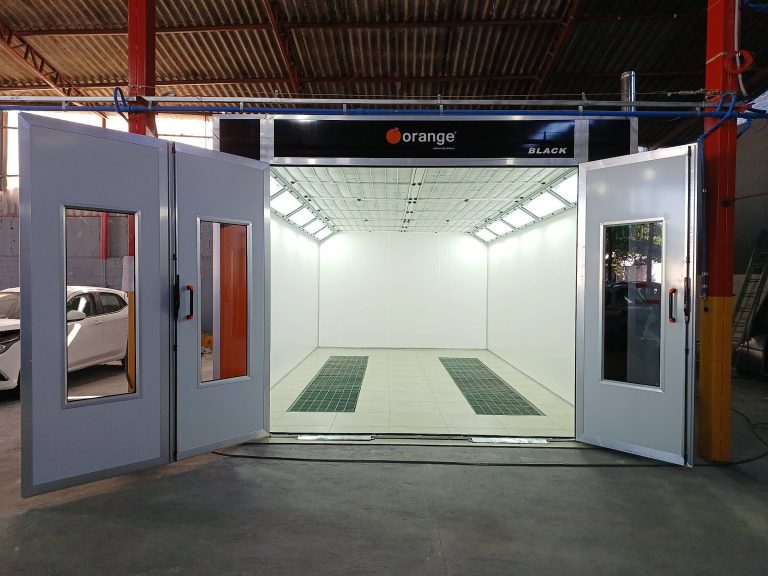

- Lighting with 40 LED lamps at 45º, providing 750 lux without shadow areas.

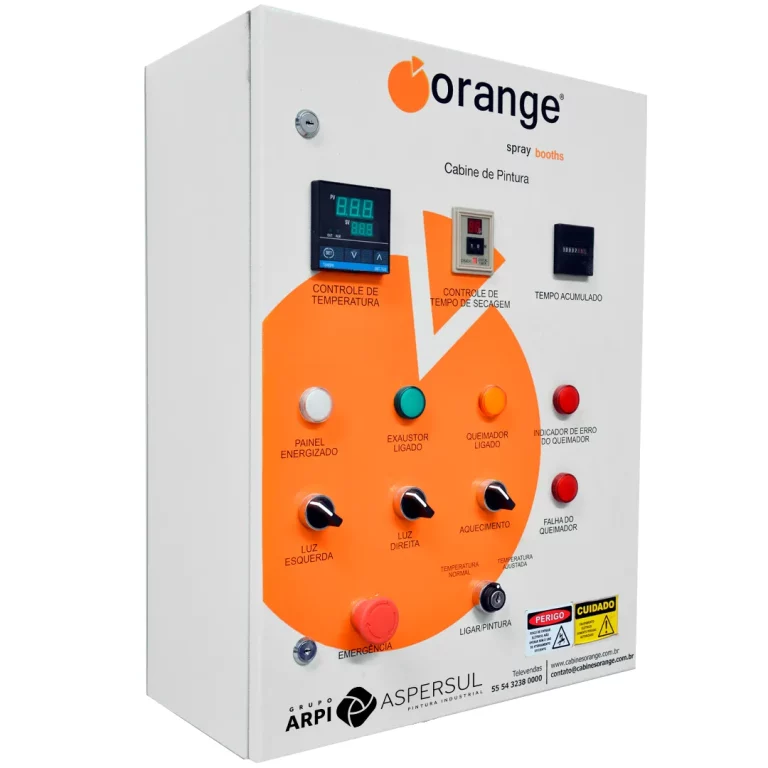

- 7.5 HP three-phase armored motor and digital temperature controller with capacity up to 60ºC.

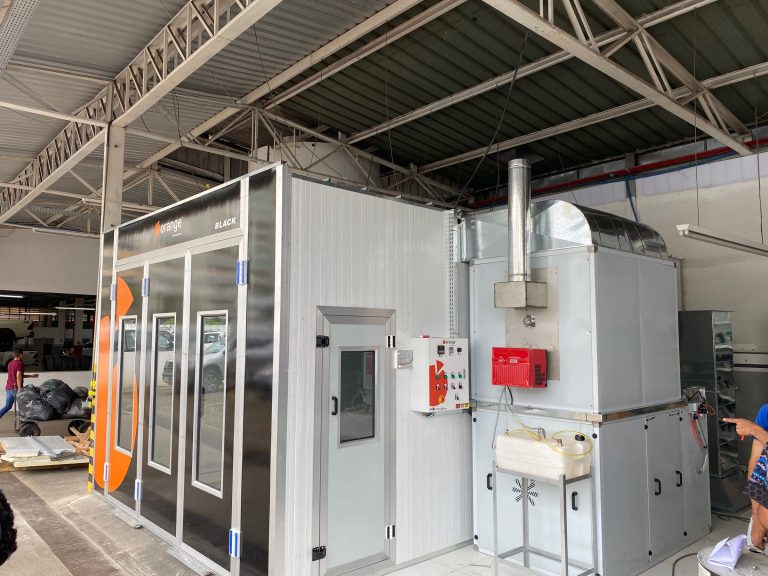

- Emergency side access, baseless option (with civil works) and filter kit for immediate use.
Available Dimensions
Total width*: 4,000mm / Useful: 3,900mm
Total depth*: 7,000mm / Useful: 6,900mm
Total height: 3,100mm / Useful: 2,650mm
*1,200mm must be added to the total external measurement (side or rear) depending on the location of the module.
